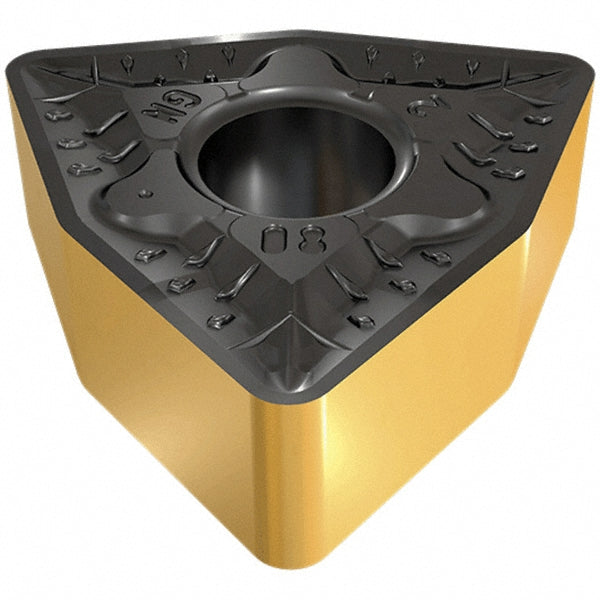

WNMG 432-GN Carbide Insert, Grade IC5005, TiCN - Iscar 5507731
MFR# 5507731ISO/ANSI# WNMG 432-GNCat# WNMG 432-GNSeries Isoturn
$16.69List $21.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC5005
MaterialCarbide
CoatingTiCN
Description
The Iscar 5507731 is a WNMG 432-GN carbide indexable insert, grade IC5005, TiCN coated. Suited for cast iron, hard material, steel.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3430
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 432-GN
Length range0.3000 - 0.4000
Manufacturers catalog numberWNMG 432-GN
Manufacturer gradeIC5005
Maximum depth of cut0.1770
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialCast Iron; Hard Material; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
