Iscar

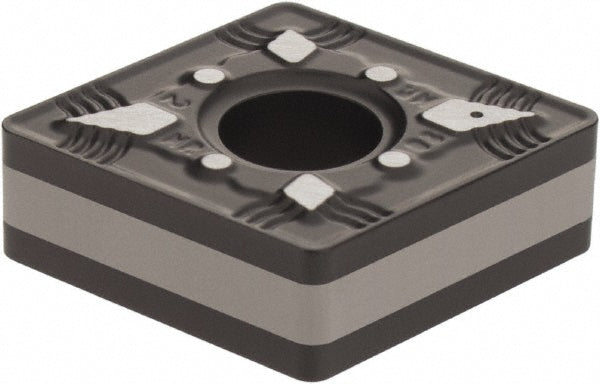

ISO 13399 Solid Carbide Insert, Grade IC5010, TiCN - Iscar 5507735
MFR# 5507735ISO/ANSI# ISO 13399Series Isoturn
$18.01List $23.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC5010
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507735 is a ISO 13399 solid carbide indexable insert, grade IC5010, TiCN coated. Suited for k.
Specifications
Chip breakerNR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC5010
Maximum depth of cut0.1770
Primary workpiece materialK
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
