Iscar

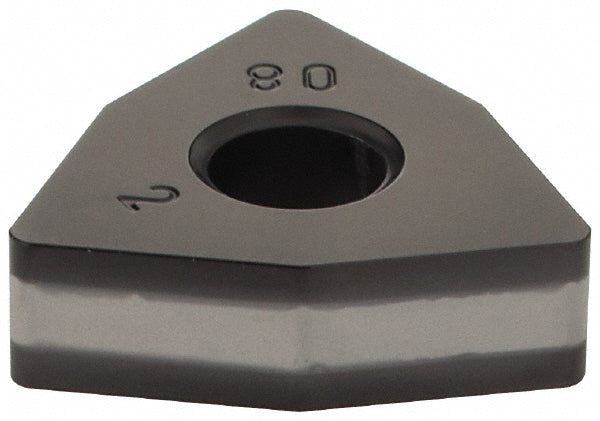

ISO 13399 Solid Carbide Insert, Grade IC5010, TiCN/Al2O3/TiN - Iscar 5507737
MFR# 5507737ISO/ANSI# ISO 13399Series Isoturn
$19.57List $25.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC5010
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Iscar 5507737 is a ISO 13399 solid carbide indexable insert, grade IC5010, TiCN/Al2O3/TiN coated. Suited for cast iron.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMA
Insert thickness in3/16
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC5010
Maximum depth of cut0.1575
Primary workpiece materialCast Iron
Relief angle0
StandardsISO 13399
Tolerance codeM
