Iscar

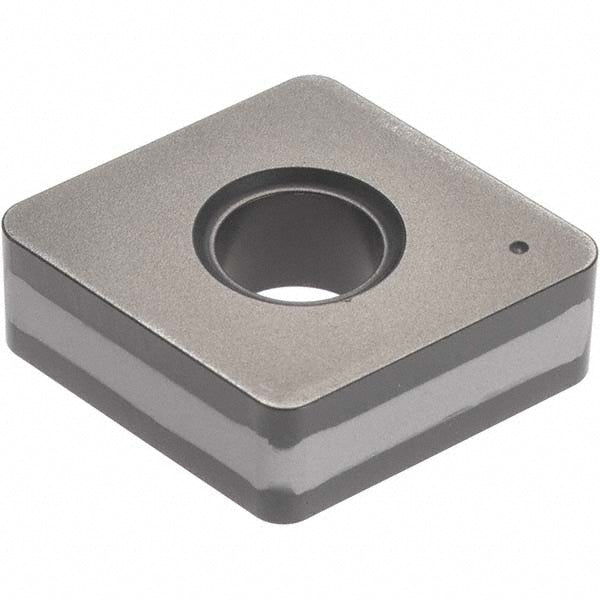

CNMA 433 Solid Carbide Insert, Grade IC5010, TiCN - Iscar 5507738
MFR# 5507738ISO/ANSI# CNMA 433Cat# CNMA 433Series Isoturn
$16.22List $20.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC5010
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507738 is a CNMA 433 solid carbide indexable insert, grade IC5010, TiCN coated. Suited for cast iron.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA 433
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMA 433
Manufacturer gradeIC5010
Maximum depth of cut0.1770
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialCast Iron
Relief angle0
StandardsISO 13399
Tolerance codeM
