Iscar

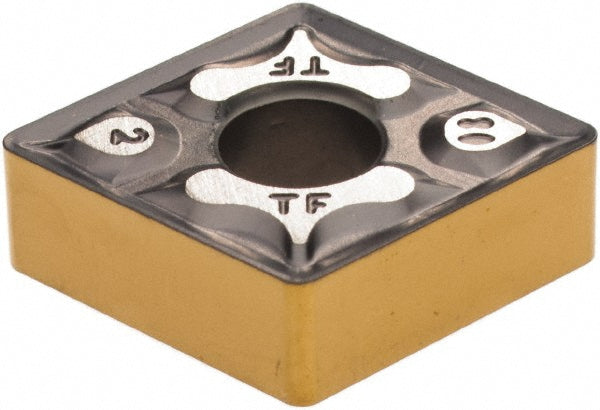

CNMG 432-TF Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5507752
MFR# 5507752ISO/ANSI# CNMG 432-TFSeries Isoturn
$16.66List $21.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5507752 is a CNMG 432-TF solid carbide indexable insert, grade IC830, AlTiN coated.
Specifications
Chip breakerTF
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 432-TF
Length range0.5000 - 0.6000
Manufacturer gradeIC830
Maximum depth of cut0.1570
Multi use applicationFacing
Multi use toolYes
RakePositive
Relief angle0
Single or double endDouble
StandardsISO 13399
Tolerance codeM
