Iscar

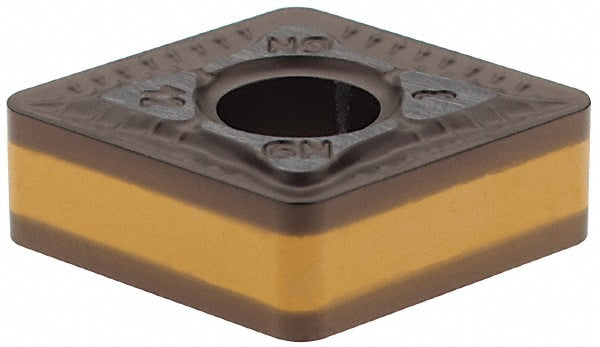

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5507804
MFR# 5507804ISO/ANSI# ISO 13399Series Isoturn
$18.01List $23.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507804 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC8250
Maximum depth of cut0.1969
Primary workpiece materialP
Relief angle0
Secondary workpiece materialM
StandardsISO 13399
Tolerance codeM
