Iscar

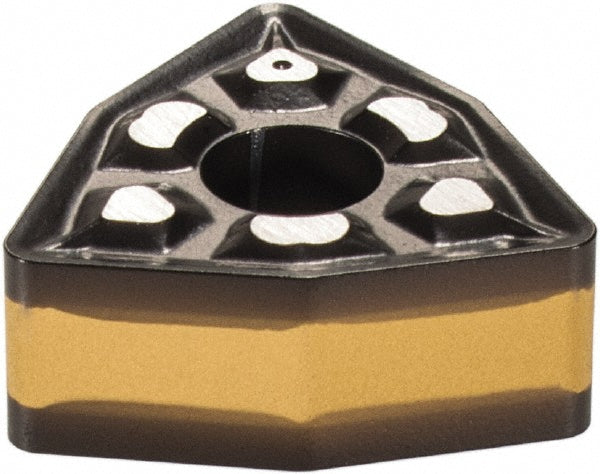

WNMG 332-TF Carbide Insert, Grade IC8250, TiCN - Iscar 5507825
MFR# 5507825ISO/ANSI# WNMG 332-TFCat# WNMG 332-TFSeries Isoturn
$15.05List $19.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC8250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5507825 is a WNMG 332-TF carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle80
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2570
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 332-TF
Length range0.0000 - 0.3000
Manufacturers catalog numberWNMG 332-TF
Manufacturer gradeIC8250
Maximum depth of cut0.1180
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
