Iscar

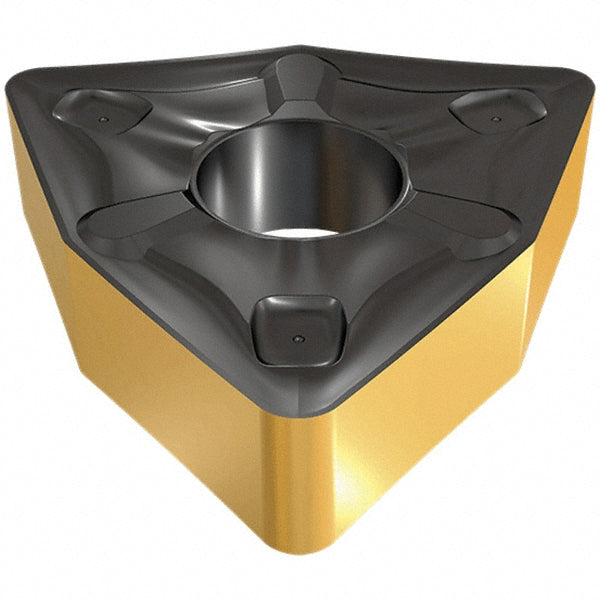

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5507827
MFR# 5507827ISO/ANSI# ISO 13399Series Isoturn
$35.87List $46.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeTrigon
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507827 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerTNM
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in3/64
Included angle80.0
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length0.5130
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code643
Insert styleWNMG
Insert thickness in1/4
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC8250
Maximum depth of cut0.2756
Primary workpiece materialStainless Steel; Steel
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
