Iscar

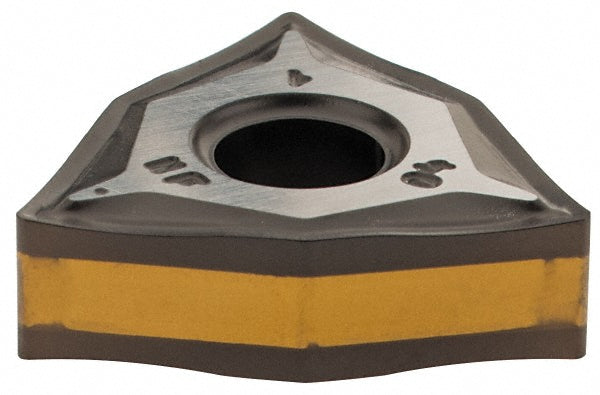

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5507829
MFR# 5507829ISO/ANSI# ISO 13399Series Isoturn
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507829 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC8250
Maximum depth of cut0.1378
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
