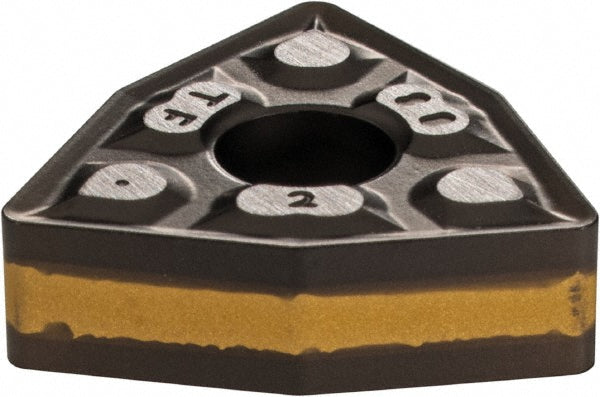

ISO 13399 Solid Carbide Insert, Grade IC8150, TiCN/Al2O3/TiCN/TiN - Iscar 5507835
MFR# 5507835ISO/ANSI# ISO 13399Series Isoturn
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC8150
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiCN/TiN
Description
The Iscar 5507835 is a ISO 13399 solid carbide indexable insert, grade IC8150, TiCN/Al2O3/TiCN/TiN coated. Suited for cast iron, steel.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN/Al2O3/TiCN/TiN
Coating processCVD
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC8150
Maximum depth of cut0.1575
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
