Iscar

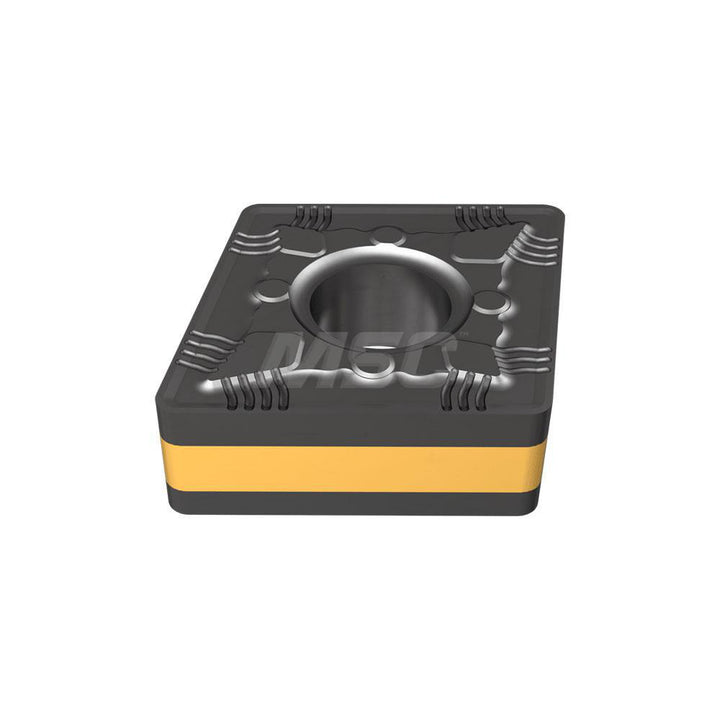

ISO 13399 Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5507838
MFR# 5507838ISO/ANSI# ISO 13399Series Isoturn
$40.31List $51.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507838 is a ISO 13399 solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerNR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Included angle80.0
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length0.7600
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code644
Insert styleCNMG
Insert thickness in1/4
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIC8150
Maximum depth of cut0.3937
Primary workpiece materialCast Iron; Steel
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
