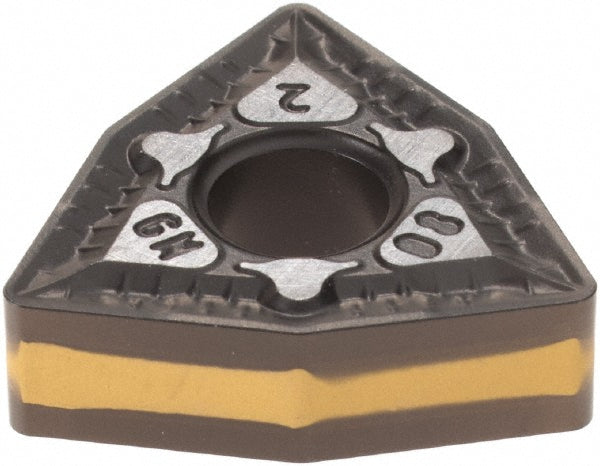

ISO 13399 Carbide Insert, Grade IC8350, TiCN - Iscar 5507851

Iscar

ISO 13399 Carbide Insert, Grade IC8350, TiCN - Iscar 5507851

MFR# 5507851ISO/ANSI# WNMG080402Series Isoturn

$16.69List $21.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeIC8350
MaterialCarbide
CoatingTiCN

Description

The Iscar 5507851 is a ISO 13399 carbide indexable insert, grade IC8350, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeWNMG432
Ansi size code432
Chip breakerGN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeWNMG080402
Iso size code080402
Length range0.3000 - 0.4000
Manufacturer gradeIC8350
Maximum depth of cut0.1770
Primary workpiece materialStainless Steel; Steel
Relief angle0
Side clearanceNegative
StandardsISO 13399
Stocking categoryD
Tolerance codeM
