Iscar

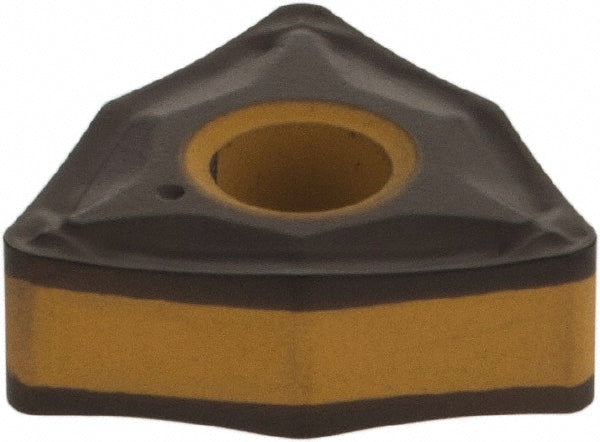

ISO 13399 Solid Carbide Insert, Grade IC8350, TiCN - Iscar 5507860
MFR# 5507860ISO/ANSI# ISO 13399Series Isoturn
$15.05List $19.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC8350
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507860 is a ISO 13399 solid carbide indexable insert, grade IC8350, TiCN coated. Suited for p.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code3-2
Insert styleWNMG
Insert thickness in5/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC8350
Maximum depth of cut0.1180
Primary workpiece materialP
RakePositive
Relief angle0
Secondary workpiece materialM
StandardsISO 13399
Stocking categoryD
Tolerance codeM
