Iscar

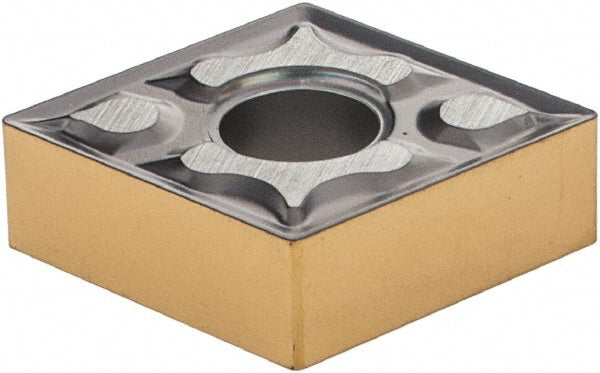

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5507865
MFR# 5507865ISO/ANSI# ISO 13399Series Isoturn
$16.66List $21.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5507865 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC807
Maximum depth of cut0.1575
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
