Iscar

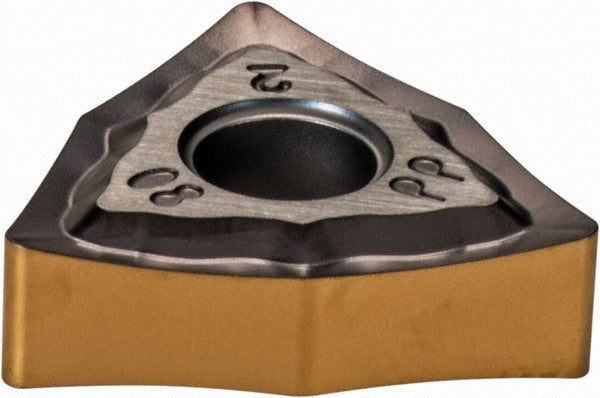

WNMG 432-PP Carbide Insert, Grade IC807, TiN - Iscar 5507868
MFR# 5507868ISO/ANSI# WNMG 432-PPCat# WNMG 432-PPSeries Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC807
MaterialCarbide
CoatingTiN
Description
The Iscar 5507868 is a WNMG 432-PP carbide indexable insert, grade IC807, TiN coated.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3430
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 432-PP
Length range0.3000 - 0.4000
Manufacturers catalog numberWNMG 432-PP
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1570
Multi use applicationBoring
Multi use toolYes
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
