Iscar

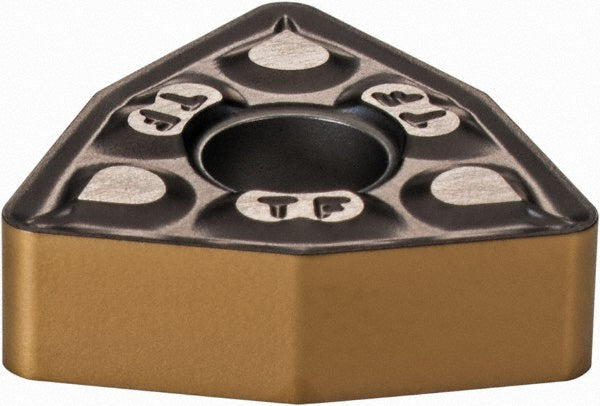

WNMG 433-TF Solid Carbide Insert, Grade IC807, TiN - Iscar 5507870
MFR# 5507870ISO/ANSI# WNMG 433-TFCat# WNMG 433-TFSeries Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC807
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5507870 is a WNMG 433-TF solid carbide indexable insert, grade IC807, TiN coated. Suited for universal.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in3/64
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3430
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 433-TF
Length range0.3000 - 0.4000
Manufacturers catalog numberWNMG 433-TF
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1770
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
