Iscar

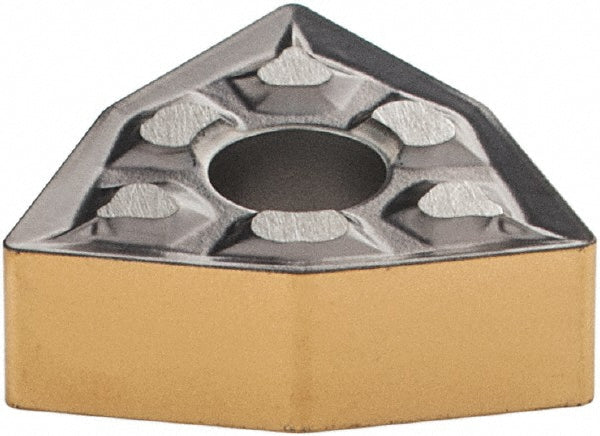

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5507872
MFR# 5507872ISO/ANSI# ISO 13399Series Isoturn
$13.96List $17.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5507872 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code3-1
Insert styleWNMG
Insert thickness in5/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1180
Primary workpiece materialM; P; S
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
