Iscar

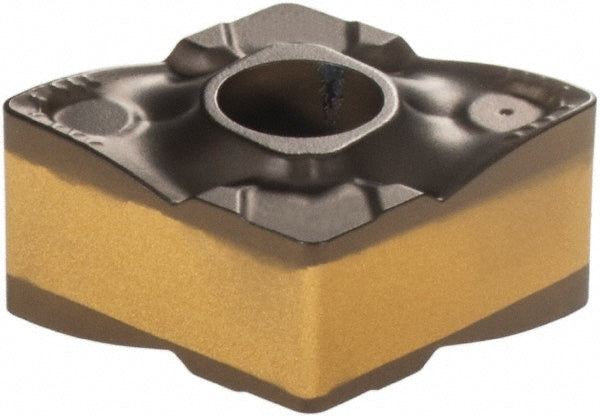

CNMX 452-M4MW Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5507897
MFR# 5507897ISO/ANSI# CNMX 452-M4MWCat# CNMX 452-M4MWSeries Heliturn LD
$20.89List $26.80
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507897 is a CNMX 452-M4MW solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerM4MW
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code452
Insert styleCNMX
Insert thickness0.2660
Iso codeCNMX 452-M4MW
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMX 452-M4MW
Manufacturer gradeIC8150
Maximum depth of cut0.2360
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
