Iscar

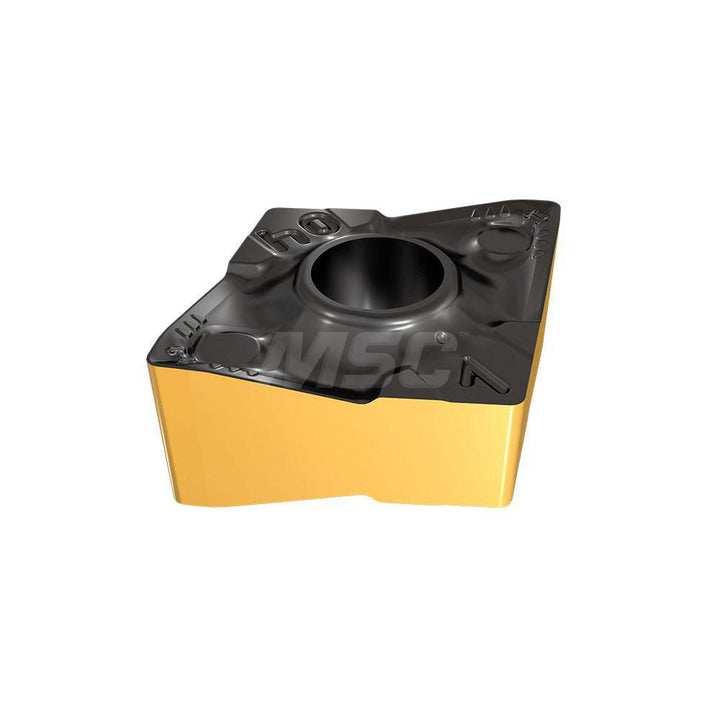

CNMX 452-M4PW Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5507915
MFR# 5507915ISO/ANSI# CNMX 452-M4PWCat# CNMX 452-M4PWSeries Heliturn LD
$20.89List $26.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507915 is a CNMX 452-M4PW solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerM4PW
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code452
Insert styleCNMX
Insert thickness0.2660
Iso codeCNMX 452-M4PW
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMX 452-M4PW
Manufacturer gradeIC8150
Maximum depth of cut0.2360
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
