Iscar

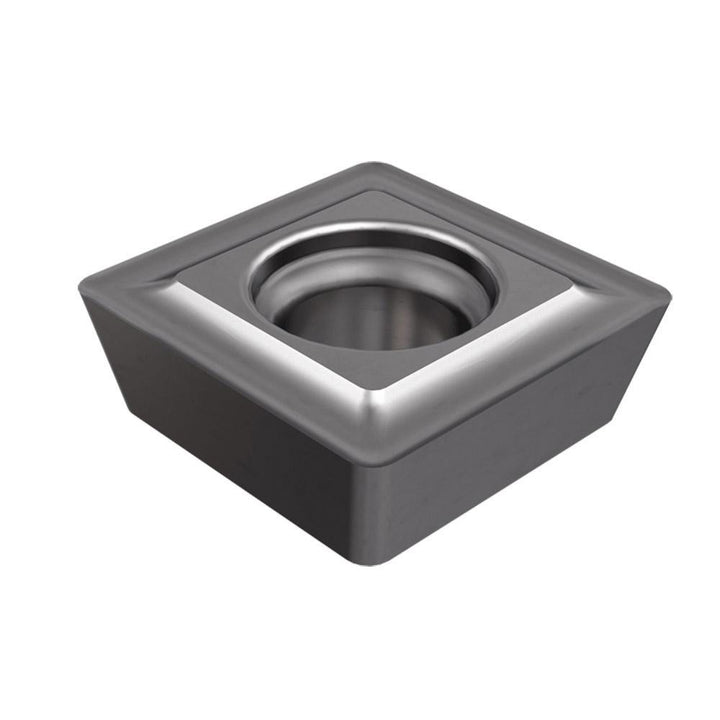

0.5000" IC Carbide Insert, Grade IC08 - Iscar 5507944
MFR# 5507944Series SOGT
$19.83List $25.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC08
MaterialCarbide
Description
The Iscar 5507944 is a carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
ChipbreakerDT
Coating processUncoated
Corner radius0.0315
Included angle degree60
Inscribed circle0.5000
Insert materialCarbide
Insert size code12
Insert styleSOGT
Length0.5
Manufacturer gradeIC08
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
ShapeSquare
Thickness0.1874
Width1.0000
