Iscar

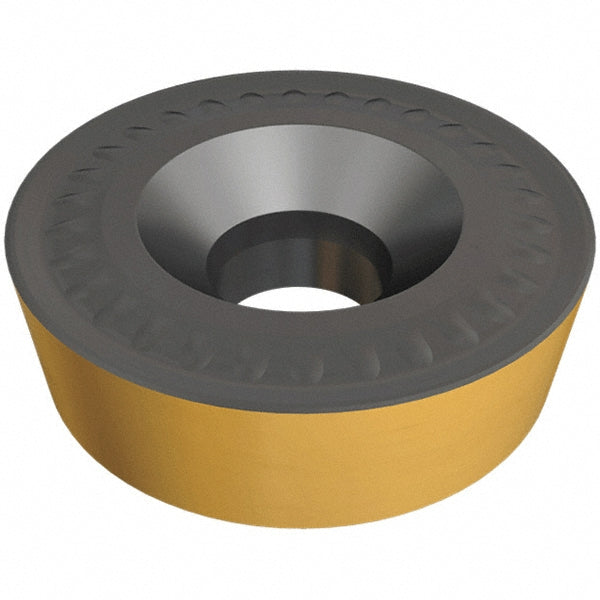

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5507968
MFR# 5507968ISO/ANSI# ISO 13399Series Isoturn
$69.00List $88.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC8250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5507968 is a ISO 13399 carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerNR
Clearance codeC
Coating finishTiCN
Coating processPVD
Hole diameter0.2835
Inscribed circle0.9843
Insert holding methodScrew
Insert materialCarbide
Insert shapeRound
Insert size code250700
Insert styleRCMX
Insert thickness in5/16
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.3937
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
