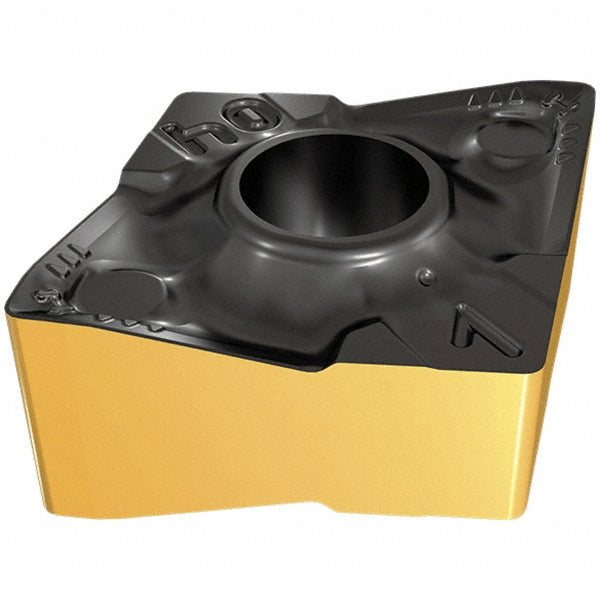

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5507989

Iscar

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5507989

MFR# 5507989ISO/ANSI# CNMX160712Series Heliturn

$32.91List $42.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC8250
MaterialCarbide
CoatingTiCN

Description

The Iscar 5507989 is a ISO 13399 carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeCNMX553
Ansi size code553
Chip breakerPW
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in3/64
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length0.6340
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code553
Insert styleCNMX
Insert thickness in1/4
Iso codeISO 13399
Iso insert codeCNMX160712
Iso size code160712
Length range0.6000 - 0.6500
Manufacturer gradeIC8250
Maximum depth of cut0.3150
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Wiper edgeYes
