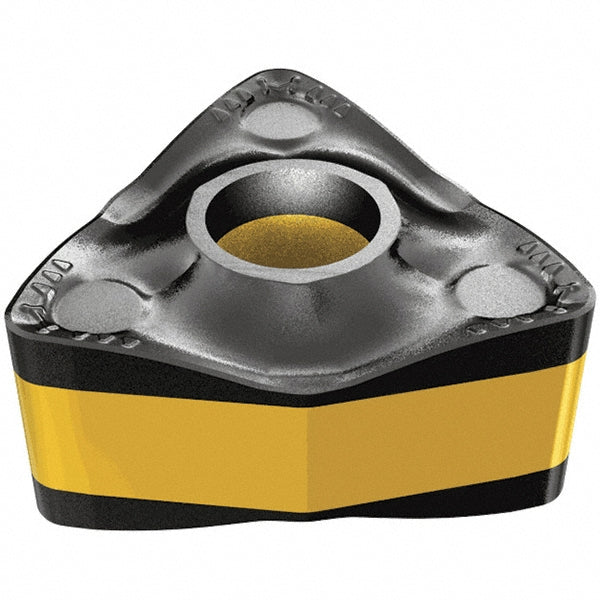

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5507992
MFR# 5507992ISO/ANSI# ISO 13399Series Heliturn LD
$16.53List $21.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5507992 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerHTW
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2559
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code342
Insert styleWNMX
Insert thickness0.1736
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1575
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
