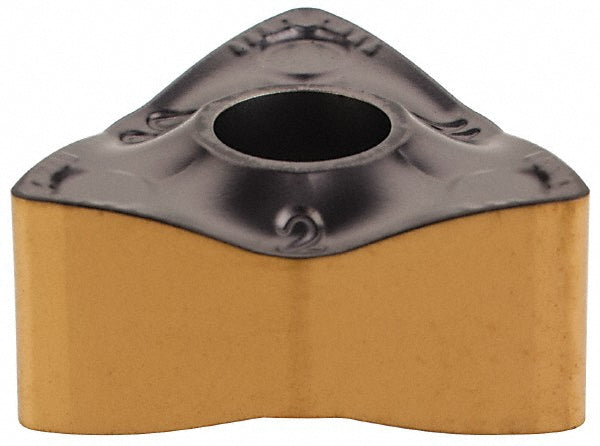

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5507994
MFR# 5507994ISO/ANSI# ISO 13399Series Heliturn LD
$20.35List $26.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5507994 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerHTW
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code452
Insert styleWNMX
Insert thickness0.2669
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC807
Maximum depth of cut0.4130
Primary workpiece materialM; P; S
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
