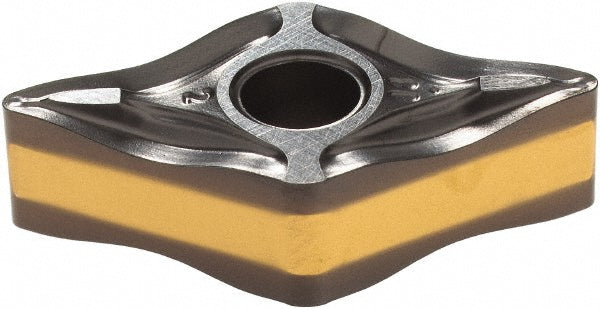

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5507997
MFR# 5507997ISO/ANSI# ISO 13399Series Heliturn LD
$27.75List $35.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507997 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerM3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code442
Insert styleDNMX
Insert thickness in1/4
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC8250
Maximum depth of cut0.2756
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle5
Relief angle0
StandardsISO 13399
Tolerance codeM
