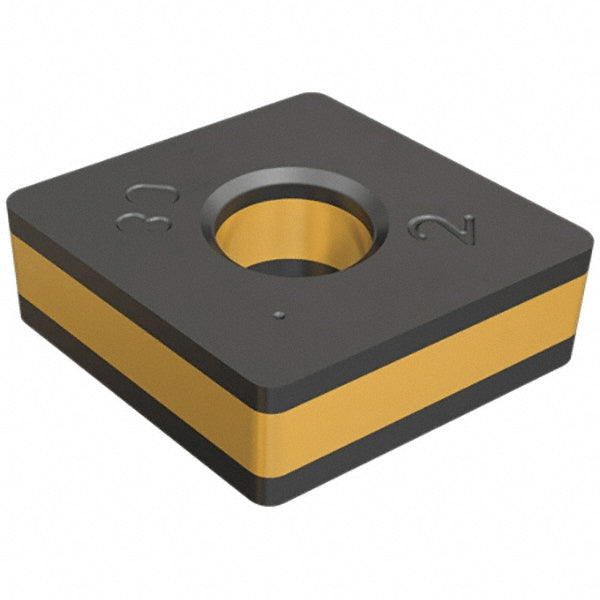

ISO 13399 Solid Carbide Insert, Grade IC5010, TiCN - Iscar 5508070
MFR# 5508070ISO/ANSI# ISO 13399Series Isoturn
$30.25List $38.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeIC5010
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508070 is a ISO 13399 solid carbide indexable insert, grade IC5010, TiCN coated. Suited for cast iron.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Included angle80.0
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length0.6260
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code544
Insert styleCNMA
Insert thickness in1/4
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC5010
Maximum depth of cut0.3937
Primary workpiece materialCast Iron
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
