Iscar

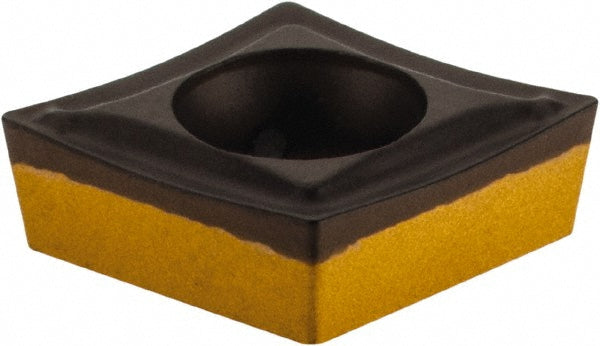

CCMT21.50.5 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508087
MFR# 5508087ISO/ANSI# CCMT21.50.5Series Isoturn
$14.89List $19.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508087 is a CCMT21.50.5 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0079
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-0
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT21.50.5
Length range0.0000 - 0.3000
Manufacturer gradeIC8250
Maximum depth of cut0.0790
Primary workpiece materialP
RakePositive
Relief angle7
Secondary workpiece materialM
StandardsISO 13399
Tolerance codeM
