Iscar

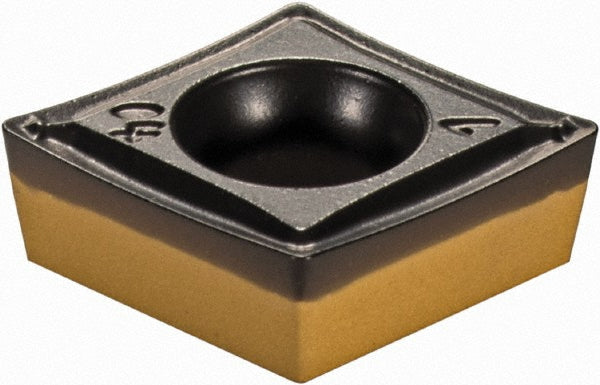

CCMT 3-1-SM Carbide Insert, Grade IC8250, TiCN - Iscar 5508089
MFR# 5508089ISO/ANSI# CCMT09T304Cat# CCMT 3-1-SMSeries Isoturn
$17.00List $21.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC8250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5508089 is a CCMT 3-1-SM carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Ansi insert codeCCMT3-1
Ansi size code3-1
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3-1
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 3-1-SM
Iso insert codeCCMT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog numberCCMT 3-1-SM
Manufacturer gradeIC8250
Maximum depth of cut0.0980
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeM
