Iscar

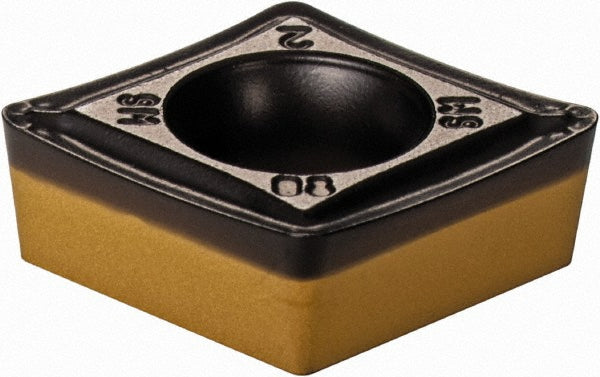

CCMT 3-2-SM Carbide Insert, Grade IC8250, TiCN - Iscar 5508090
MFR# 5508090ISO/ANSI# CCMT 3-2-SMCat# CCMT 3-2-SMSeries Isoturn
$17.00List $21.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5508090 is a CCMT 3-2-SM carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeDiamond
Insert size code3-2
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 3-2-SM
Length range0.3000 - 0.4000
Manufacturers catalog numberCCMT 3-2-SM
Manufacturer gradeIC8250
Maximum depth of cut0.1180
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
