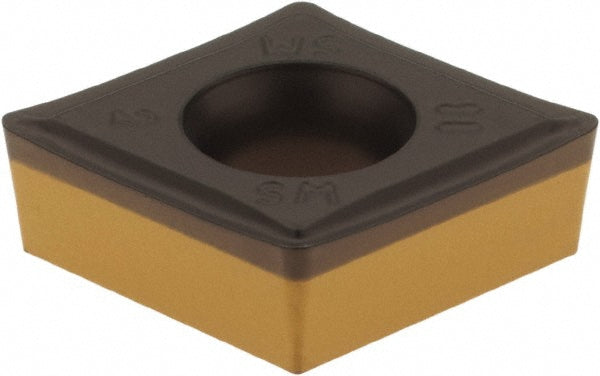

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508093
MFR# 5508093ISO/ANSI# ISO 13399Series Isoturn
$21.99List $28.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508093 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2165
Included angle80.0
Inscribed circle in1/2
Insert holding methodScrew
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC8250
Maximum depth of cut0.1378
Primary workpiece materialP
RakePositive
Relief angle7
Secondary workpiece materialM
StandardsISO 13399
Tolerance codeM
