Iscar

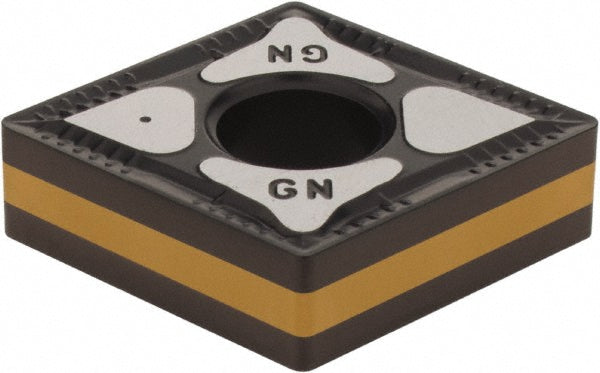

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508097
MFR# 5508097ISO/ANSI# ISO 13399Series Isoturn
$40.31List $51.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508097 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.3130
Included angle80.0
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code642
Insert styleCNMG
Insert thickness in1/4
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIC8250
Maximum depth of cut0.3150
Primary workpiece materialP
Relief angle0
Secondary workpiece materialM
StandardsISO 13399
Tolerance codeM
