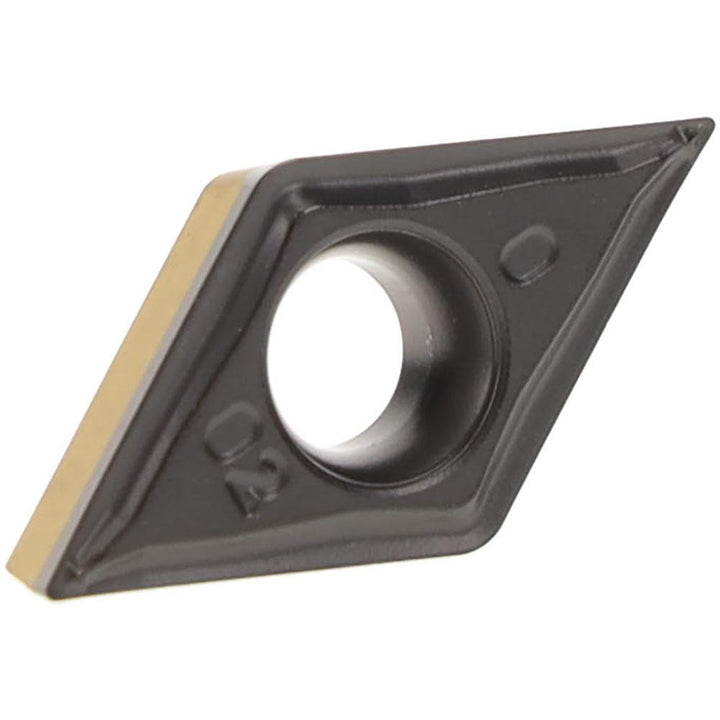

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508100
MFR# 5508100ISO/ANSI# ISO 13399Series Isoturn
$21.13List $27.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508100 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0080
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code30
Insert styleDCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC8250
Maximum depth of cut0.0984
Primary workpiece materialP
RakePositive
Relief angle7
Secondary workpiece materialM
StandardsISO 13399
Stocking categoryD
Tolerance codeM
