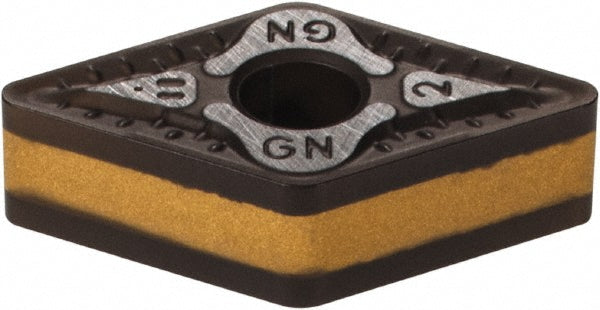

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508106
MFR# 5508106ISO/ANSI# ISO 13399Series Isoturn
$20.11List $25.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508106 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle55.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.4580
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC8250
Maximum depth of cut0.1570
Primary workpiece materialP
Relief angle0
Secondary workpiece materialM
StandardsISO 13399
Stocking categoryD
Tolerance codeM
