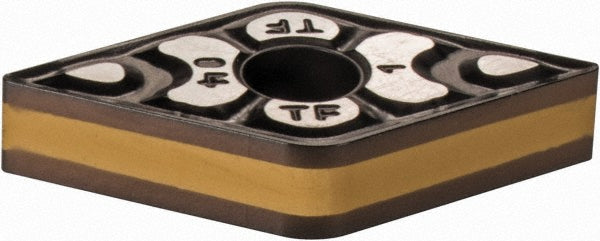

DNMG 431-TF Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508107
MFR# 5508107ISO/ANSI# DNMG 431-TFCat# DNMG 431-TFSeries Isoturn
$24.17List $31.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508107 is a DNMG 431-TF solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 431-TF
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMG 431-TF
Manufacturer gradeIC8250
Maximum depth of cut0.1180
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
