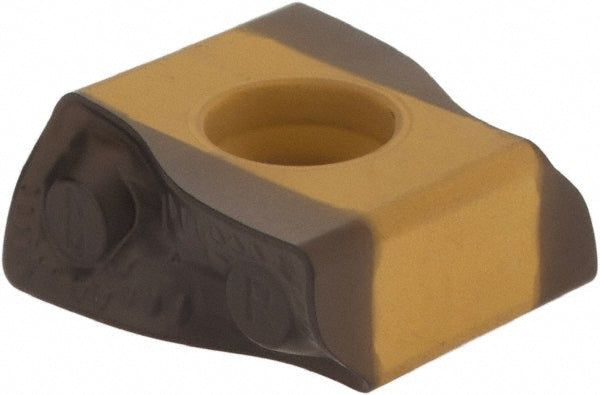

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508114
MFR# 5508114ISO/ANSI# ISO 13399Cat# LNMX150608RSeries Heliturn
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508114 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breakerRHT
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting directionRight Hand
Included angle90.0
Insert handRight Hand
Insert holding methodScrew
Insert length0.5906
Insert materialSolid Carbide
Insert shapeRectangle
Insert size code150608
Insert styleLNMX
Insert thickness0.5276
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturers catalog numberLNMX150608R
Manufacturer gradeIC8250
Maximum depth of cut (mm)6.00
Primary workpiece materialP
RakePositive
Relief angle0
Secondary workpiece materialM
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width0.2520
