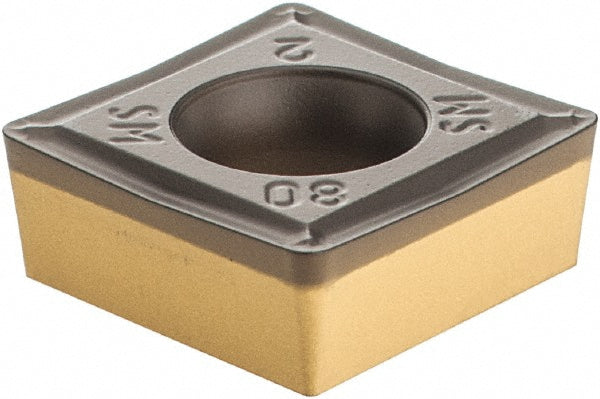

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5508122

MFR# 5508122ISO/ANSI# SCMT120408Series Isoturn

$22.61List $29.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeIC8250
MaterialCarbide
CoatingTiCN

Description

The Iscar 5508122 is a ISO 13399 carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeSCMT432
Ansi size code432
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2165
Included angle90
Inscribed circle in1/2
Insert holding methodScrew
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSCMT
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeSCMT120408
Iso size code120408
Manufacturer gradeIC8250
Maximum depth of cut0.1575
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width in1/2
