Iscar
SNMG432 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508125
MFR# 5508125ISO/ANSI# SNMG432Series Isoturn
$17.00List $21.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description

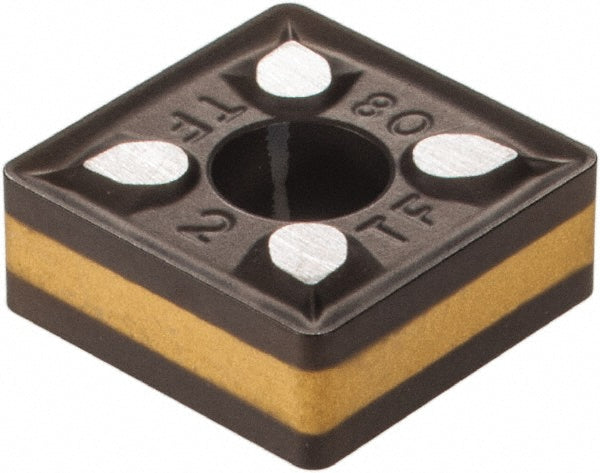

The Iscar 5508125 is a SNMG432 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle90.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG432
Manufacturer gradeIC8250
Maximum depth of cut0.1575
Primary workpiece materialP
RakePositive
Relief angle0
Secondary workpiece materialM
StandardsISO 13399
Tolerance codeM
Width in1/2
