Iscar

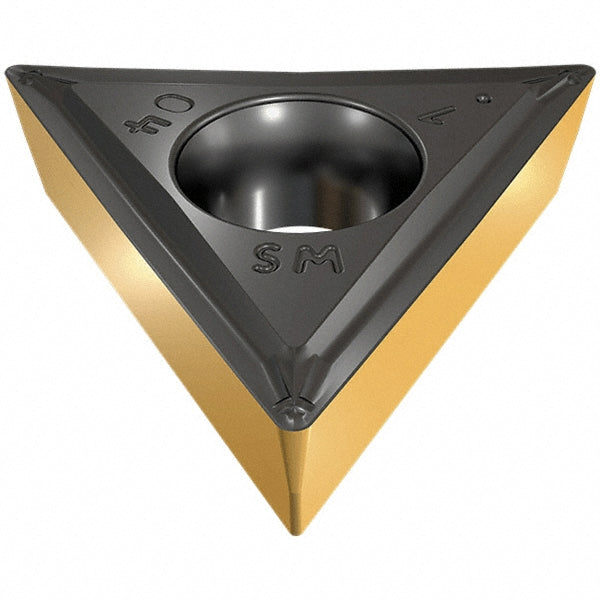

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508127
MFR# 5508127ISO/ANSI# ISO 13399Series Isoturn
$20.59List $26.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508127 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle60.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code3-2
Insert styleTCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC8250
Maximum depth of cut0.1180
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
