Iscar

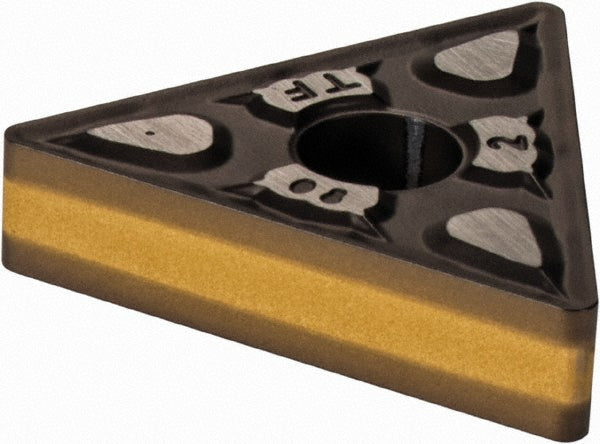

TNMG 432-TF Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508135
MFR# 5508135ISO/ANSI# TNMG 432-TFCat# TNMG 432-TFSeries Isoturn
$20.74List $26.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508135 is a TNMG 432-TF solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle60.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 432-TF
Length range0.7000 - 10.0000
Manufacturers catalog numberTNMG 432-TF
Manufacturer gradeIC8250
Maximum depth of cut0.1570
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
