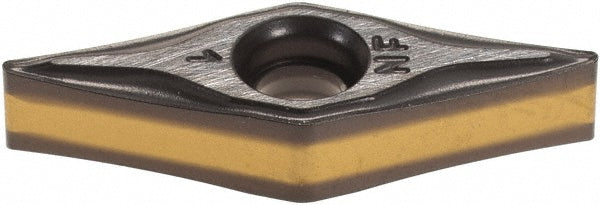

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508144
MFR# 5508144ISO/ANSI# ISO 13399Series Isoturn
$17.15List $22.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC9/32
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508144 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle35.0
Inscribed circle in9/32
Insert holding methodClamp; Pin
Insert length0.4882
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2.5
Insert styleVNMG
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC8250
Maximum depth of cut0.0787
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
