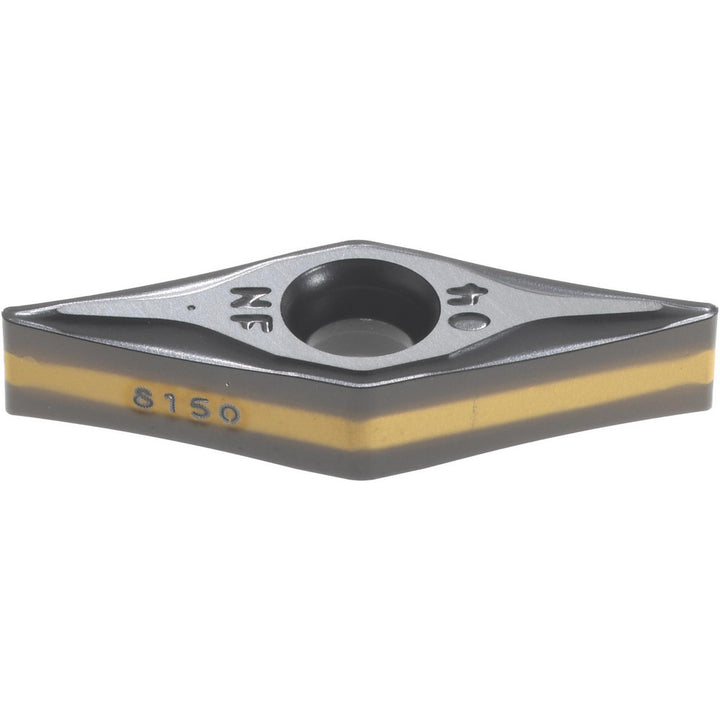

ISO 13399 Carbide Insert, Grade IC8150, TiCN - Iscar 5508169

Iscar

ISO 13399 Carbide Insert, Grade IC8150, TiCN - Iscar 5508169

MFR# 5508169ISO/ANSI# VNMG12T304Series Isoturn

$19.96List $25.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC9/32
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC8150
MaterialCarbide
CoatingTiCN

Description

The Iscar 5508169 is a ISO 13399 carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.

Specifications

Ansi insert codeVNMG2.5-1
Ansi size code2.5-1
Chip breakerNF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Hardened Materials (H) - High Wear-Resistance
Included angle35
Inscribed circle in9/32
Insert holding methodClamp; Pin
Insert length0.4882
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code2.5-1
Insert styleVNMG
Insert thickness in5/32
Iso codeISO 13399
Iso insert codeVNMG12T304
Iso size code12T304
Length range0.4000 - 0.5000
Manufacturer gradeIC8150
Maximum depth of cut0.0787
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
