Iscar

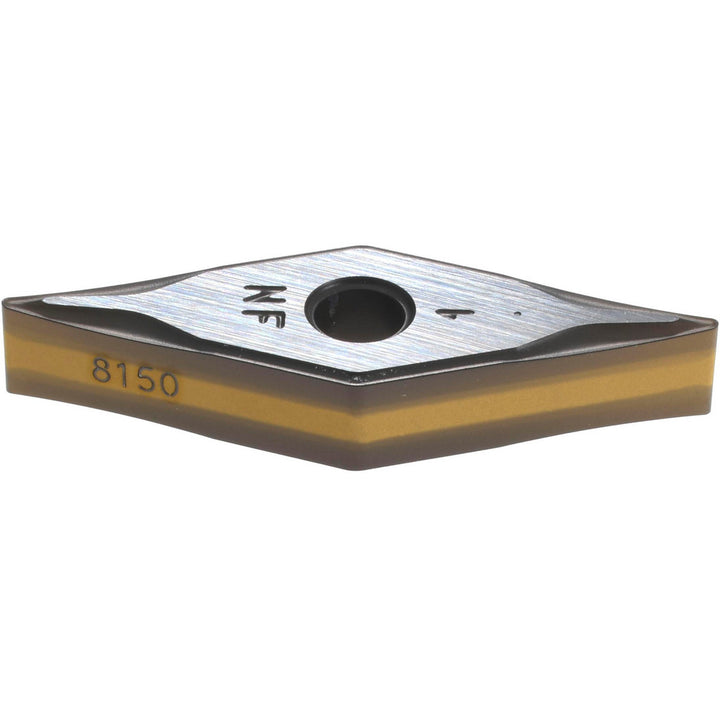

ISO 13399 Carbide Insert, Grade IC8150, TiCN - Iscar 5508171
MFR# 5508171ISO/ANSI# VNMG160404Series Isoturn
$28.85List $37.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC8150
MaterialCarbide
CoatingTiCN
Description
The Iscar 5508171 is a ISO 13399 carbide indexable insert, grade IC8150, TiCN coated.
Specifications
Ansi insert codeVNMG331
Ansi size code331
Chip breakerNF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Hardened Materials (H) - High Wear-Resistance
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeVNMG160404
Iso size code160404
Length range0.6500 - 0.7000
Manufacturer gradeIC8150
Maximum depth of cut0.0984
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
