Iscar

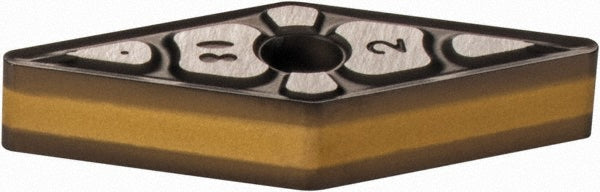

VNMG 332-TF Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5508172
MFR# 5508172ISO/ANSI# VNMG 332-TFCat# VNMG 332-TFSeries Isoturn
$28.85List $37.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508172 is a VNMG 332-TF solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 332-TF
Length range0.6500 - 0.7000
Manufacturers catalog numberVNMG 332-TF
Manufacturer gradeIC8150
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
