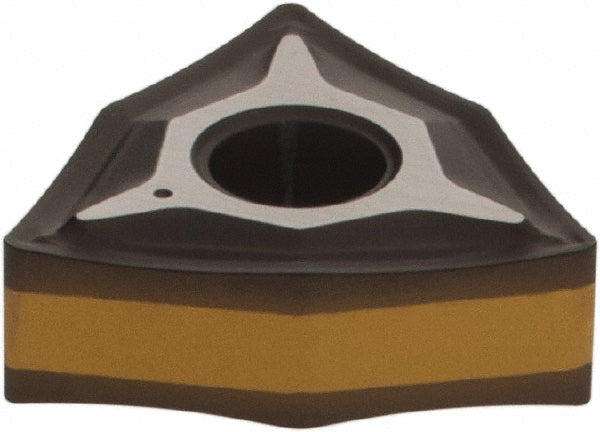

ISO 13399 Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5508173
MFR# 5508173ISO/ANSI# ISO 13399Series Isoturn
$15.05List $19.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508173 is a ISO 13399 solid carbide indexable insert, grade IC8150, TiCN coated. Suited for p.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1500
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code3-1
Insert styleWNMG
Insert thickness in5/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC8150
Maximum depth of cut0.0984
Primary workpiece materialP
RakePositive
Relief angle0
Secondary workpiece materialK
StandardsISO 13399
Stocking categoryD
Tolerance codeM
