Iscar

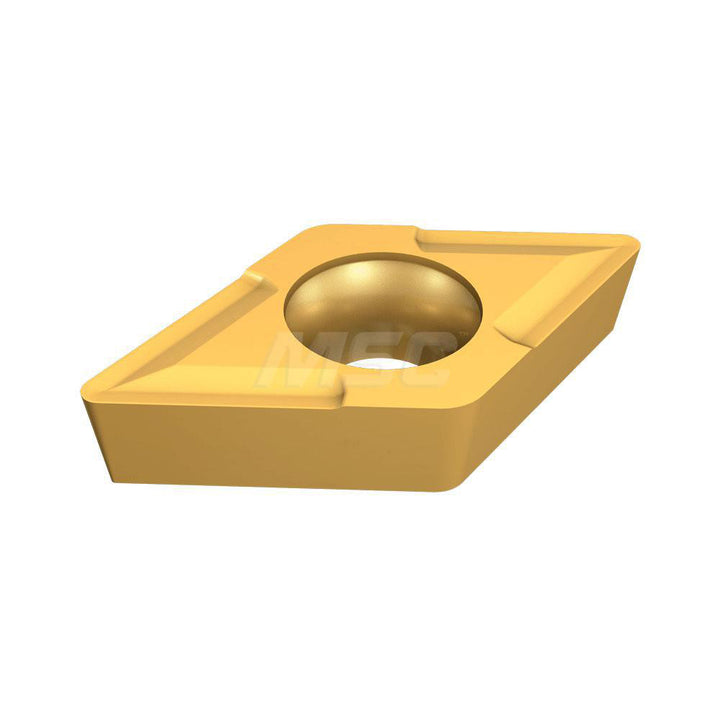

ISO 13399 Carbide Insert, Grade IC8150, TiCN - Iscar 5508210
MFR# 5508210ISO/ANSI# DCMT150408Series Isoturn
$14.74List $18.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeIC8150
MaterialCarbide
CoatingTiCN
Description
The Iscar 5508210 is a ISO 13399 carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Ansi insert codeDCMT432
Ansi size code432
Chip breakerT
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Hardened Materials (H) - High Wear-Resistance
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.3030
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDCMT
Insert thickness in3/32
Iso codeISO 13399
Iso insert codeDCMT150408
Iso size code150408
Length range0.3000 - 0.4000
Manufacturer gradeIC8150
Maximum depth of cut0.0787
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Stocking categoryD
Tolerance codeM
