Iscar

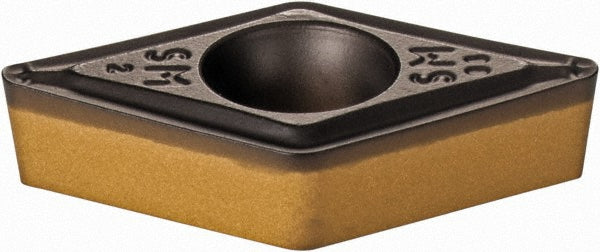

DCMT 3-2-SM Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5508214
MFR# 5508214ISO/ANSI# DCMT 3-2-SMCat# DCMT 3-2-SMSeries Isoturn
$21.13List $27.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508214 is a DCMT 3-2-SM solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1730
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4570
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-2
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 3-2-SM
Length range0.4000 - 0.5000
Manufacturers catalog numberDCMT 3-2-SM
Manufacturer gradeIC8150
Maximum depth of cut0.1180
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
