Iscar

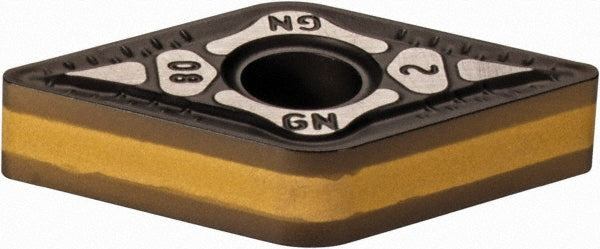

DNMG 432-GN Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5508220
MFR# 5508220ISO/ANSI# DNMG 432-GNCat# DNMG 432-GNSeries Isoturn
$24.17List $31.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508220 is a DNMG 432-GN solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 432-GN
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMG 432-GN
Manufacturer gradeIC8150
Maximum depth of cut0.1570
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialCast Iron; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
