Iscar

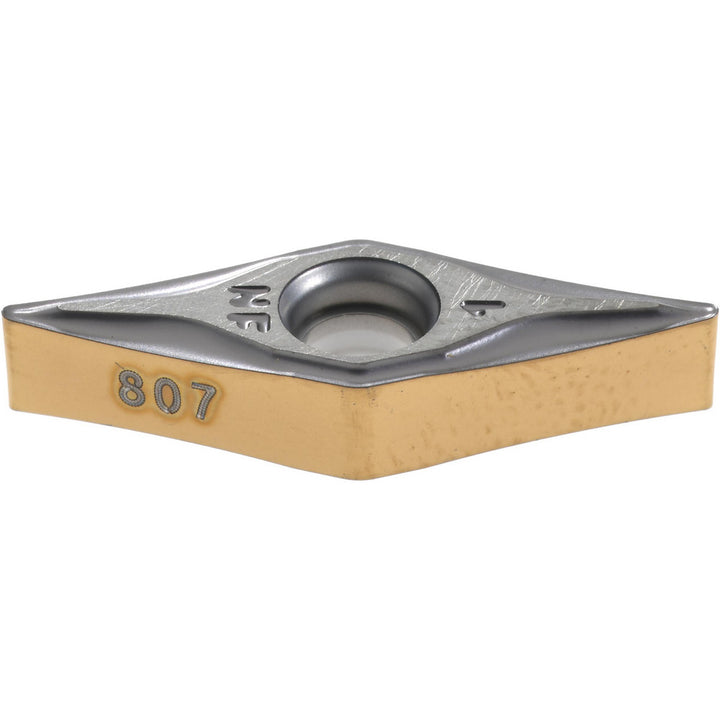

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5508221
MFR# 5508221ISO/ANSI# VNMG12T304Series Isoturn
$18.55List $23.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC9/32
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5508221 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Ansi insert codeVNMG2.5-1
Ansi size code2.5-1
Chip breakerNF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Hole diameter0.1100
Included angle35
Inscribed circle in9/32
Insert holding methodClamp; Pin
Insert length0.4882
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code2.5
Insert styleVNMG
Insert thickness in5/32
Iso codeISO 13399
Iso insert codeVNMG12T304
Iso size code12T304
Length range0.4000 - 0.5000
Manufacturer gradeIC807
Maximum depth of cut0.0787
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
