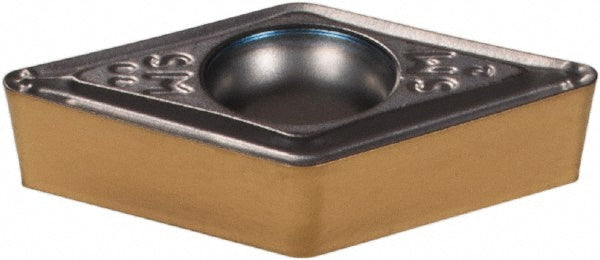

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5508227
MFR# 5508227ISO/ANSI# ISO 13399Series Isoturn
$19.65List $25.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5508227 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-2
Insert styleDCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC807
Maximum depth of cut0.1180
Primary workpiece materialM; P; S
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
