Iscar

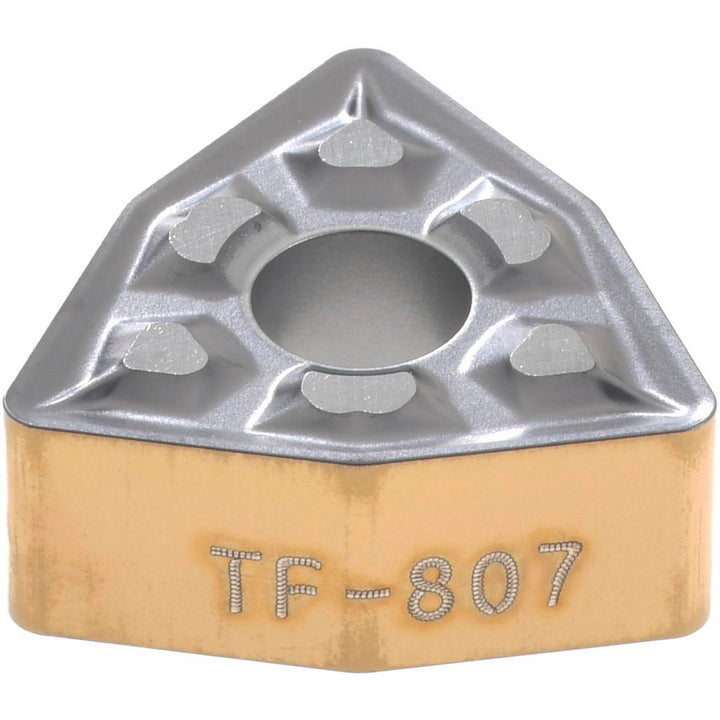

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5508230
MFR# 5508230ISO/ANSI# WNMG060408Series Isoturn
$13.96List $17.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeW - Trigon 80-Deg
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5508230 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Ansi insert codeWNMG332
Ansi size code332
Chip breakerTF
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Included angle80
Inscribed circle0.3750
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code332
Insert styleWNMG
Iso codeISO 13399
Iso insert codeWNMG060408
Iso size code060408
Manufacturer gradeIC807
Maximum depth of cut0.1180
Primary workpiece materialUniversal
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
